Aluminum Alloy Rims

Aluminum Alloy Rims

Category
CNC Machined | Customizable | OEM/ODM Available | Precision Manufacturing for Bicycles & E-Bikes
  • 🏆 High Strength, Light Weight – Reduces rotational mass, improves acceleration, braking & handling
  • 🔧 Custom OEM/ODM – Tailored rims based on your drawings, supports multiple diameters & lengths
  • ✅ Strict QC – Multiple inspections from raw material to finished product, ensuring consistent quality
  • 🌍 Global Experience – Long-term supplier for bicycles, e-bikes, and various vehicle types

Description

Technical Parameters

Can be customized according to the drawings provided by customers for personalized customization.

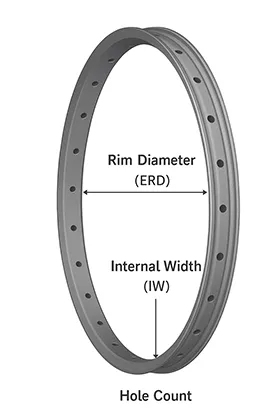

Rim Size Reference

ParameterUnitTypical RangeNotes / Remarks
Rim Diameter (ERD)mm406 / 451 / 507 / 559 / 584 / 622Matches common bike tire sizes (e.g. 700C = 622mm)
Internal Width (IW)mm17 – 30Affects tire fit and stability
Hole Countholes24 / 28 / 32 / 36Must match hub spoke holes
MaterialAluminum Alloy 6061 / 7075/6063/6069Lightweight & high strength
Surface TreatmentAnodizing / Polishing / Powder CoatingCorrosion-resistant & customizable

Technical Parameters

ItemSpecification / Options
MaterialAluminum Alloy (High Strength, Lightweight)
Size RangeCustomizable – fits bicycle, e-bike & motorcycle rims (16”–29”)
Surface TreatmentAnodizing / Painting / Polishing (Corrosion-resistant, anti-rust)
Roundness & BalanceHigh accuracy – ensures stable riding and reduces tire wear
CustomizationOEM/ODM, drawings accepted

Features

  • High Precision CNC Machining → ±0.02mm tolerance, ensures smooth bearing rotation





  • Multiple Surface Finishes → Anodized, Polished, or Sand-blased to meet brand requirements





  • Flexible Customization → Accepts drawings, prototype to mass production



Applications

  •   🚴 Bicycles – Commuting, sports, mountain biking
  • E-Bikes – City rides, delivery, long-distance use
  • 🏍 Motorcycles – On-road & off-road applications



Why Choose Us?

1. Deeply engaged in the bicycle and electric vehicle parts field for many years, with mature aluminum alloy bicycle and electric vehicle production technology, and stable and reliable product quality.
2. Can customize different specifications according to customer needs to meet the diversified shape requirements of vehicle frames.
3. Strict quality inspection process, from raw materials to finished products, with multiple controls to ensure product quality.

Related Products

FAQ

Our minimum order quantity is 500kg. For orders less than 500kg, a machine setup fee of 1,000 RMB will be charged.

We accept sample orders. We can provide 1-2 samples (with a length of approximately 50-100mm). The fee includes the mold cost plus a small amount of profile processing fee. The freight shall be borne by the customer.

The delivery time is divided into two scenarios:

  1. First orders: Mold production is required first. The total cycle = mold production cycle (10-15 days) + profile production cycle (15 days; for large batches, it will be calculated based on production capacity), totaling approximately 25-27 days.
  2. Subsequent bulk production orders: The production cycle is 15 days.

Customization is available. The customer needs to provide:

  1. Detailed 2D/3D drawings (marking cross-sectional dimensions, tolerance requirements, wall thickness, length, etc.);
  2. The application of the profile (such as construction, industrial parts, heat dissipation, etc.) to recommend a suitable alloy grade (e.g., 6061, 6063, etc.);
  3. Surface treatment requirements (such as anodizing, spraying, electrophoresis, etc.) and mechanical property requirements (such as hardness, tensile strength).

The quality complies with national standards. During the production process, the following inspections will be conducted:

  1. Raw material inspection (alloy composition testing);
  2. In-process inspection (dimensional tolerance, surface quality);
  3. Full inspection before delivery (mechanical property testing, salt spray testing, etc.).

The length can be customized. Conventional extrusion machines can produce profiles with a length of 3-12 meters (depending on the equipment tonnage and mold design). For profiles requiring anodizing treatment, we recommend a maximum length of no more than 6.5 meters. Short materials can be cut according to customer requirements (e.g., 1m, 2m, etc.) with a cutting accuracy of ±0.2mm.

Common grades and their characteristics:

  1. 6063: Easy to extrude and form, with high surface finish, suitable for construction profiles (doors, windows, curtain walls) and decorative profiles;
  2. 6061: Higher strength than 6063, with good welding performance, suitable for industrial structural parts (brackets, mechanical parts);
  3. 6082: High strength and good corrosion resistance, suitable for load-bearing components (e.g., auto parts, heavy-duty frames);
  4. 7075: An alloy with higher strength;
  5. We can recommend more suitable grades according to customer needs.

We will provide an FOB price. The price is calculated as: raw material cost (aluminum ingot price + processing fee) + mold cost (for customized orders) + surface treatment fee + miscellaneous fees (packaging, transportation, etc.). The aluminum ingot price fluctuates with the market (referring to the daily price on the Shanghai Metal Exchange). Generally, the quotation is valid for 1 month.

A 30% deposit is required in advance (for customized orders involving mold costs, the full mold cost must be prepaid). After the balance is paid, we will provide the telex release bill of lading.

 If the problem is indeed caused by our quality issues, we support returns or exchanges:

  1. Customers are requested to submit a written objection within 15 working days after receiving the goods (including customs clearance and inspection time) and provide clear photos/videos of the problem (marking the order number, product batch, problem location, and details);
  2. If the problem is indeed caused by our quality issues (such as excessive dimensional tolerance, substandard surface treatment, etc., which do not meet the agreed standards in the contract):
    • If there are subsequent orders, we will either replenish the goods in the subsequent order or deduct the amount from the payment of the subsequent order;
    • If there are no subsequent orders, we will arrange a refund based on the quantity of defective
